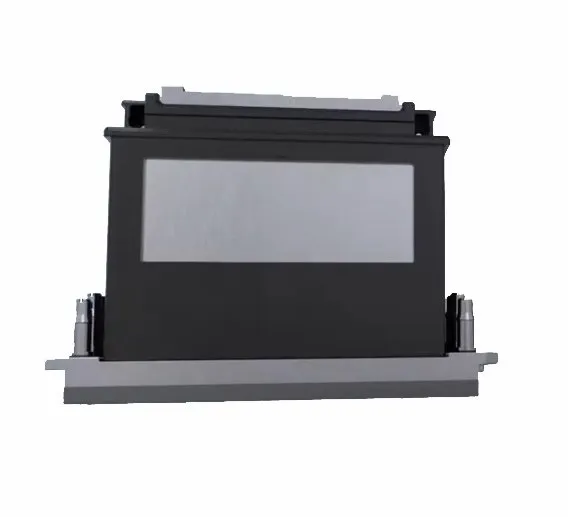

Ricoh MH5421F (GEN5i) Printhead Description
The Ricoh MH5421F is a high-performance industrial inkjet printhead designed for demanding UV printing applications requiring high speed, precision, and long-term reliability. Built with advanced piezo drop-on-demand technology and ink recirculation near the nozzle, it delivers stable ink flow, reduced nozzle clogging, and consistent print quality in continuous production environments.
Featuring 1,280 nozzles configured in 4 rows with native 600 dpi resolution, the MH5421F supports grayscale printing for smoother gradients, sharper details, and improved image reproduction. Its stainless-steel construction and integrated heater provide excellent durability and stable ink performance when operating with UV-curable inks.
The Ricoh MH5421F is widely used in wide-format, signage, packaging, label, industrial, and digital printing systems where reliable high-speed output and precise droplet control are essential.
Ricoh MH5421F (GEN5i) Printhead Specifications
| Method | Piston pusher with metallic diaphragm plate |
| Print width | 54.1 mm |
| Number of nozzles | 1280 (4*320 channels), staggered |
| Nozzle spacing | 1/150’’ (0.1693mm) |
| Nozzle spacing (row-to-row distance) | A: 0.55mm B: 11.81mm |
| Max. Number of color inks | 2 colors |
| Compatible ink | UV, Solvent, Aqueous, Others |
| Operating temperature range | Up to 60 ℃ |
| Temperature control | Integrated heater and thermistor |
| Jetting frequency | 30 kHz |
| Drop volume | 7/14/21pl (depending on the ink) |
| Viscosity range | 11 mPa.s |
| Gray-scale | 4 levels (depending on the in characteristics) |
| Separately sold parts | Ricoh MH5421F dedicated cable |
| Dimensions (WxDxH) | 89 x 24.5 x 66.3 mm (3.5’’x 1.0″ x 2.6’’) |
| Weight | 147g |
