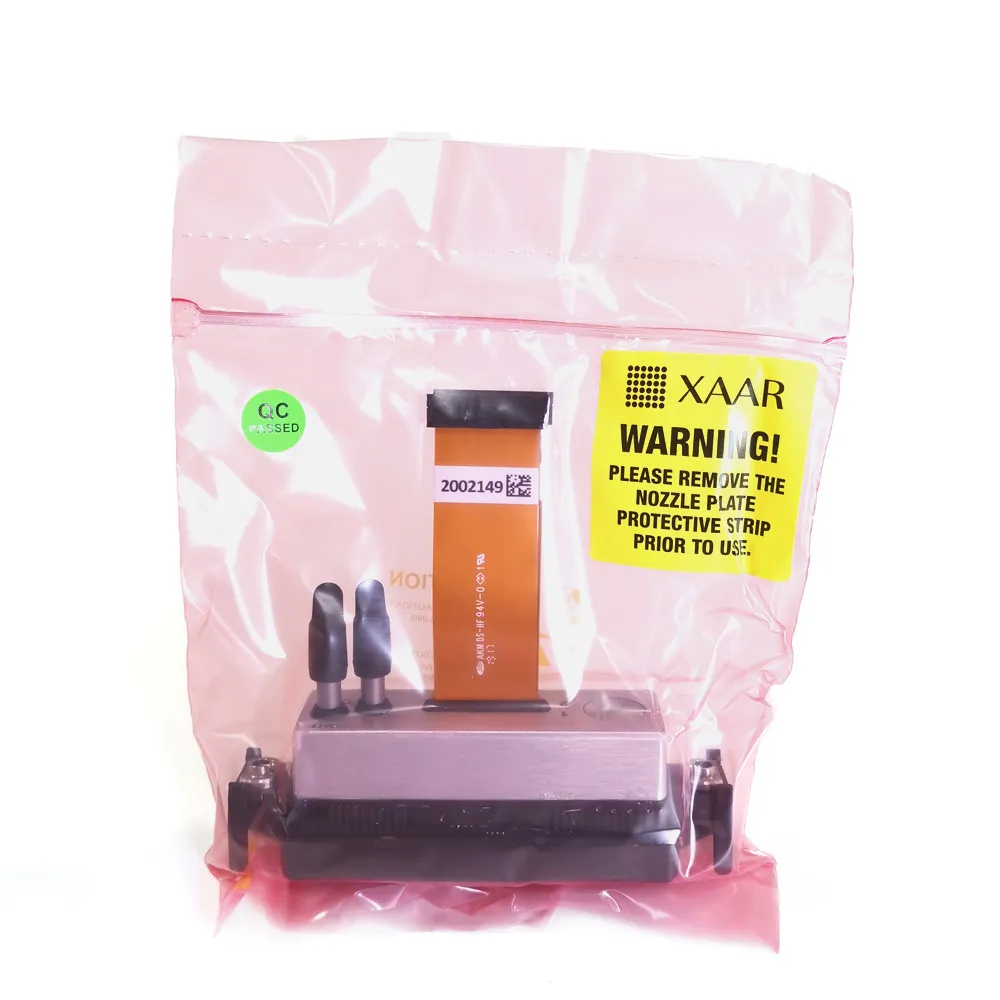

Xaar 1003 GS6C Printhead Description
The Xaar 1003 GS6C printhead is designed to be fully backward compatible with ceramic printers based on the Xaar 1002C and 1001C models due to its enhanced durability, superior print quality, and increased productivity. Small drops produce fine details, making the GS6C ideal for wall tiles.
The Xaar 1003 GS-6C Ceramics Printhead represents the latest advancement in Xaar’s line of ceramic printheads, featuring 1,000 nozzles. Building upon the success of its predecessors, the Xaar 1001 and 1002 Ceramics Printheads, which revolutionized digital ceramic tile printing.
The Xaar 1003 Ceramics printhead family introduces a significant new feature – the XaarGuard™ – which offers unparalleled protection for the nozzle plate. Moreover, the new Xaar 1003 GS6C delivers a major advancement in consistent print quality across wide print widths, making it ideal for large tile production based on Xaar’s Tuned Actuator Manufacturing technology.
Xaar 1003 GS6C Printhead Specifications
| Active Nozzles | 1000 |
| Print swathe width | 70.5mm |
| Number of rows | 2 |
| Nozzle pitch (interleaved) | 70.5 µm |
| Drop velocity* | 6 m/s |
| Nozzle density (nozzles per inch) | 360 npi |
| Drop volume | 6 to 42 pl |
| Ink Type | Oil-Based |
| Number of grey levels | 7 |
| Typical Firing Frequency* | 6 to 12 kHz |
| Dimensions (WxDxH) | 125 x 30 x 60mm |
| Weight | 144g |
| *Dependent on ink used and system integration | |
Xaar 1003 GS6C Printhead Applications
- Floor tiles
- Special effects
- Tile cladding for building exteriors
- Wall tiles
- Glass printing
