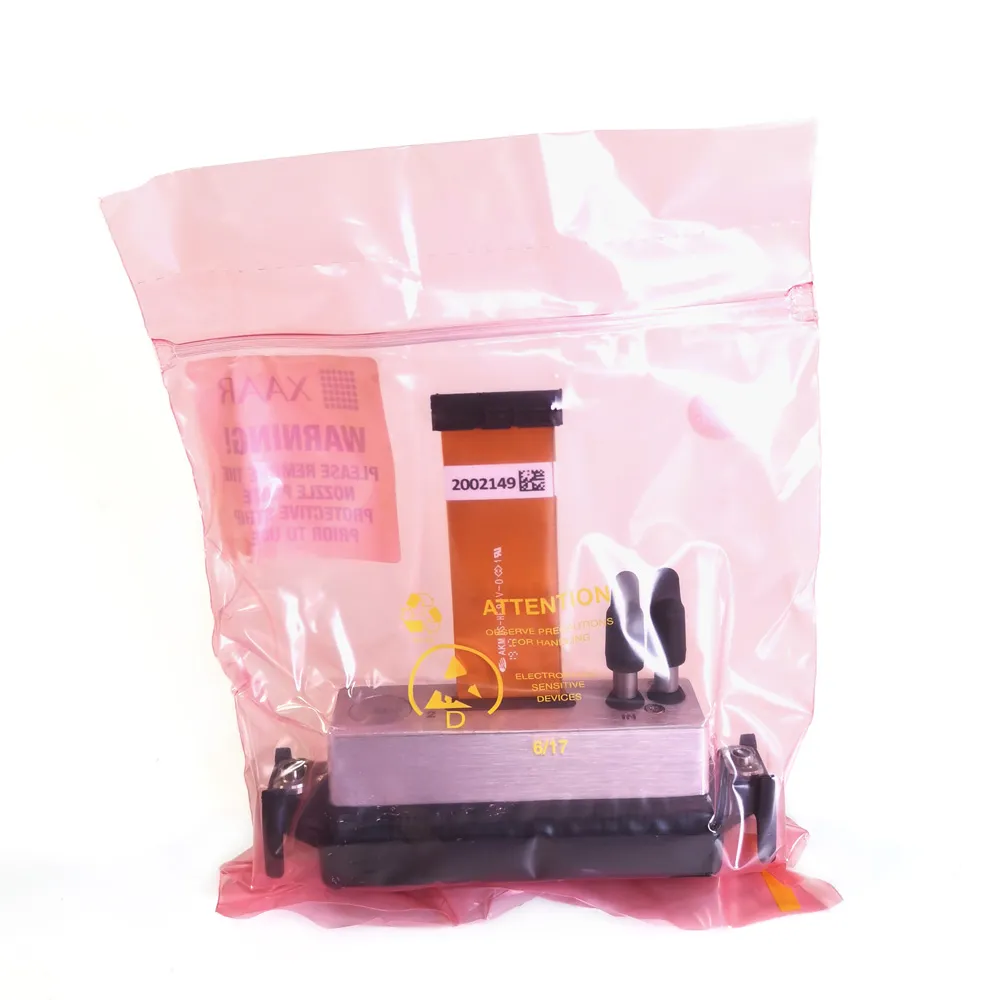

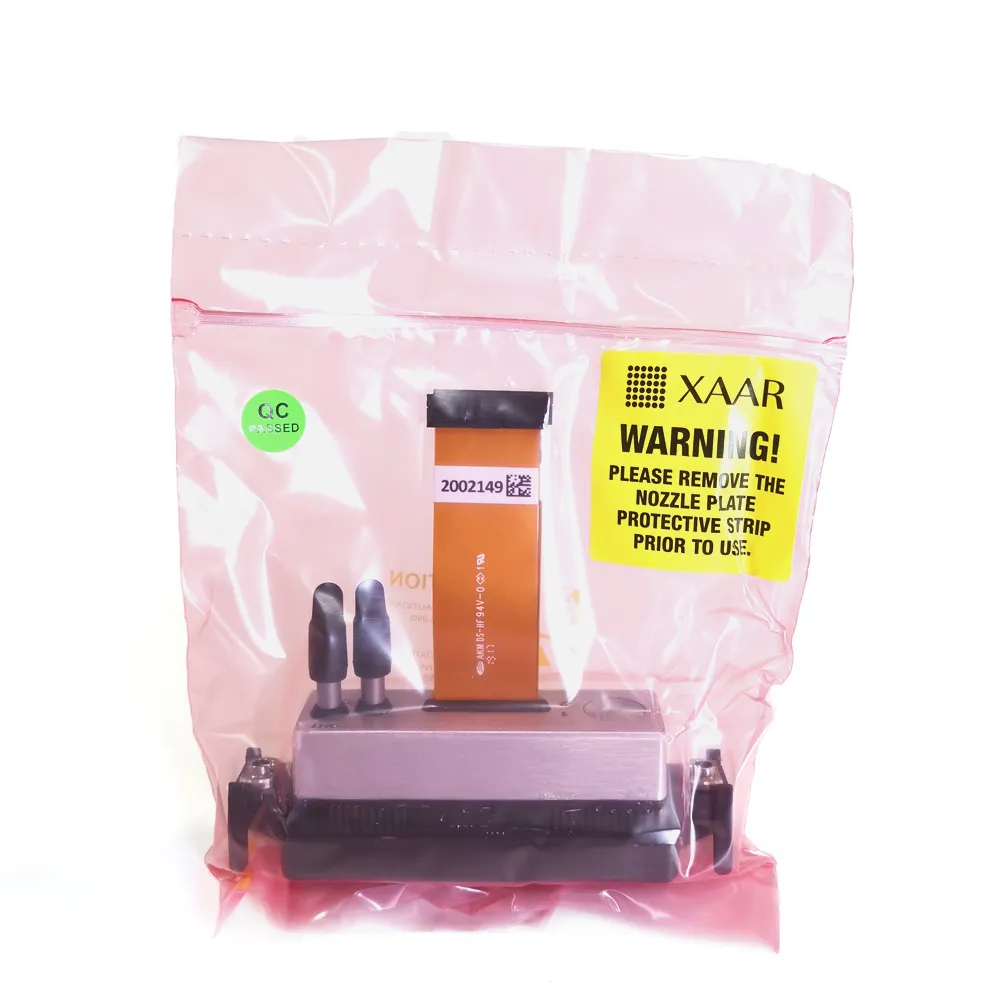

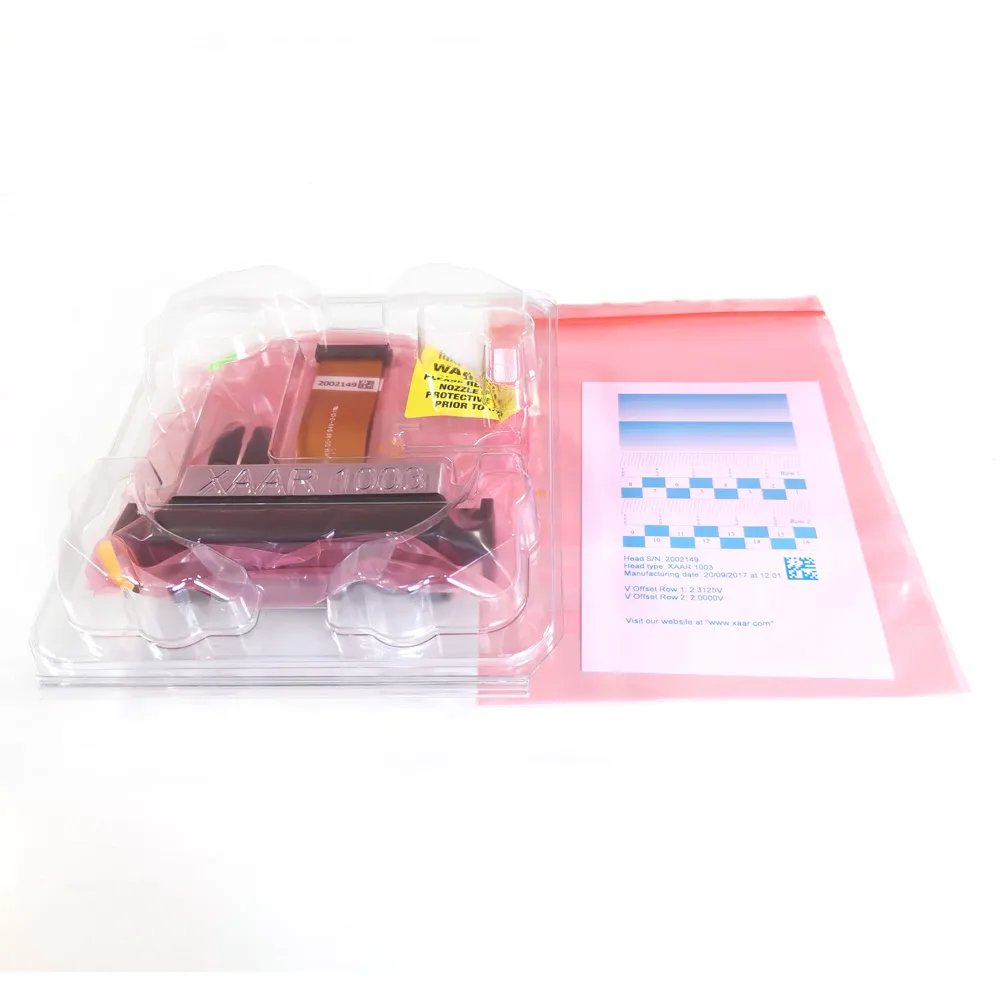

Xaar 1003 GS12U Printhead Description
The Xaar 1003 GS12U Printhead is an industrial piezoelectric inkjet printhead engineered for high-performance single-pass digital printing applications. Delivering up to 360 dpi resolution, the Xaar 1003 GS12U provides precise ink placement, reliable operation, and excellent print consistency across a wide range of industrial printing environments.
Powered by Xaar’s advanced TF Technology ink recirculation system, this printhead ensures continuous ink flow directly behind the nozzles, helping to minimize nozzle clogging, reduce maintenance requirements, and improve production uptime. Its High Laydown Technology also enables higher ink volume deposition for vibrant colors, dense coverage, and enhanced print quality on challenging substrates.
The Xaar 1003 GS12U is designed to support dependable and efficient digital printing operations, making it suitable for applications such as packaging, graphics, décor, coding & marking, ceramics, and other industrial inkjet printing systems.
The Xaar 1003 GS12U printheads can print 360 dpi resolution for a wide range of industrial applications.
• 360 x 360 dpi at up to 50 m/min line speed, with 4 grey levels (6, 12, 18 pL).
Benefits of digital printing
• Cost effective production with no limit on the run length
• Short print runs for limited editions or localised promotions
• No minimum order quantity
• No need to produce unwanted labels or overs due to minimum batch size
• Rapid order turnaround once the design is agreed
• Simple workflow with quick and easy job setup and changeover
• Avoids the complexities, cost and waste associated with flexo printing.
Xaar 1003 GS12U Printhead Specifications
| Active Nozzles | 1000 |
| Print swathe width | 70.5mm |
| Number of rows | 2 |
| Nozzle pitch (interleaved) | 70.5 µm |
| Nozzle density (nozzles per inch) | 360 npi |
| Drop volume | 12 to 84 pl |
| Ink Type | UV, Oil-Based, Solvent |
| Firing frequency / grey levels* | 27 kHz / binary 12 kHz / 4 grey levels 6 kHz / 8 grey levels |
| Max line speed / grey levels* (360 x 360 dpi) |
50 m/min / 4 grey levels 25 m/min / 8 grey levels |
| High Laydown Technology – film thickness at 50 m/min line speed* |
80 µm |
| High Laydown Technology – film thickness at 50 m/min line speed* |
50 µm |
| Dimensions (WxDxH) | 125 x 30 x 60mm |
| Weight | 144g |
| *Dependent on ink used and system integration | |
Xaar 1003 GS12U Printhead Applications
Decor:
- Glass
- Laminates
- Wallpaper
Packaging:
- Direct-to-shape
- Folding cartons
- Labels
- Product printing
