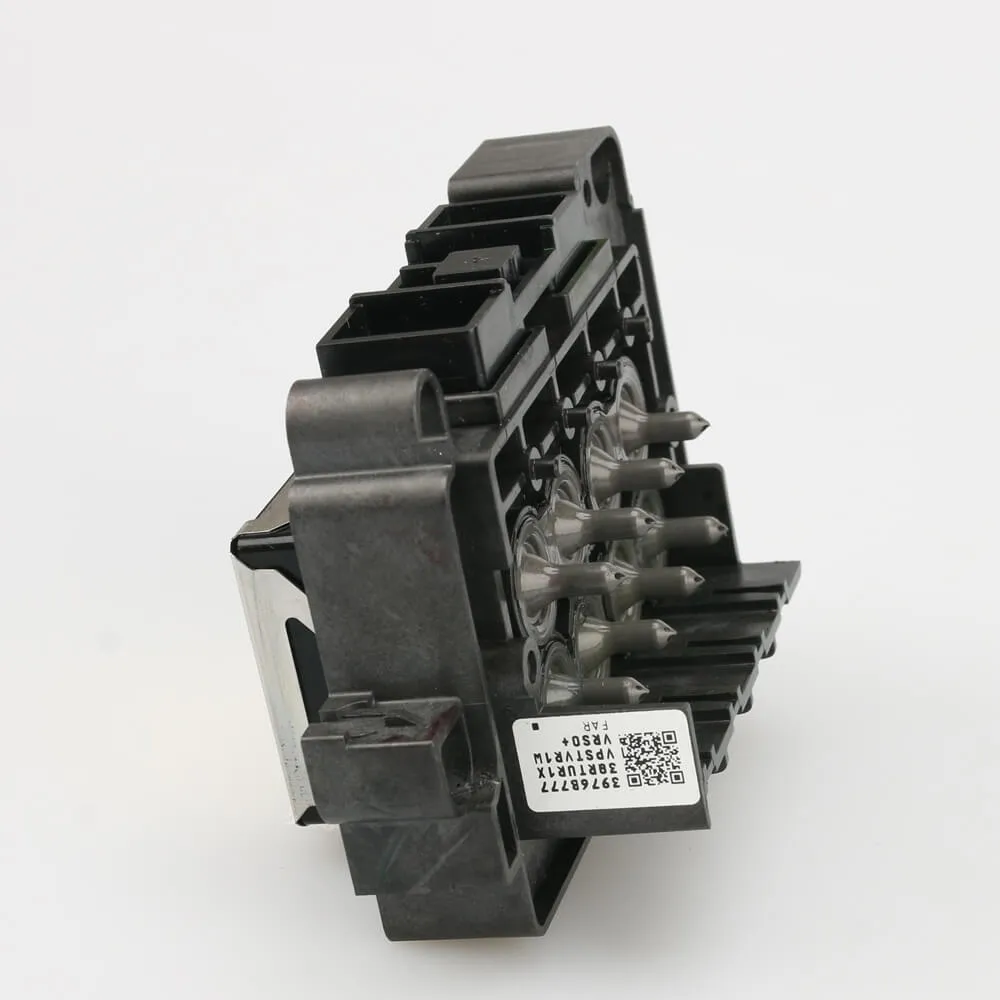

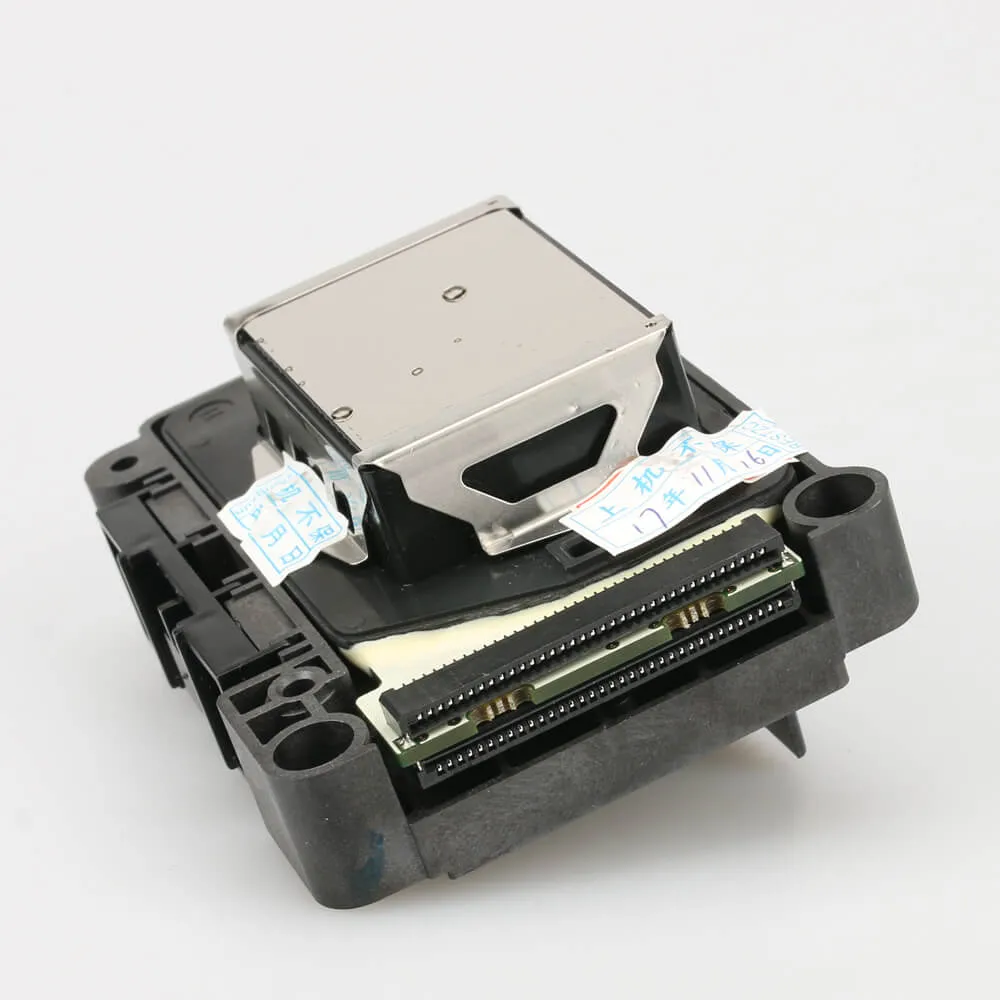

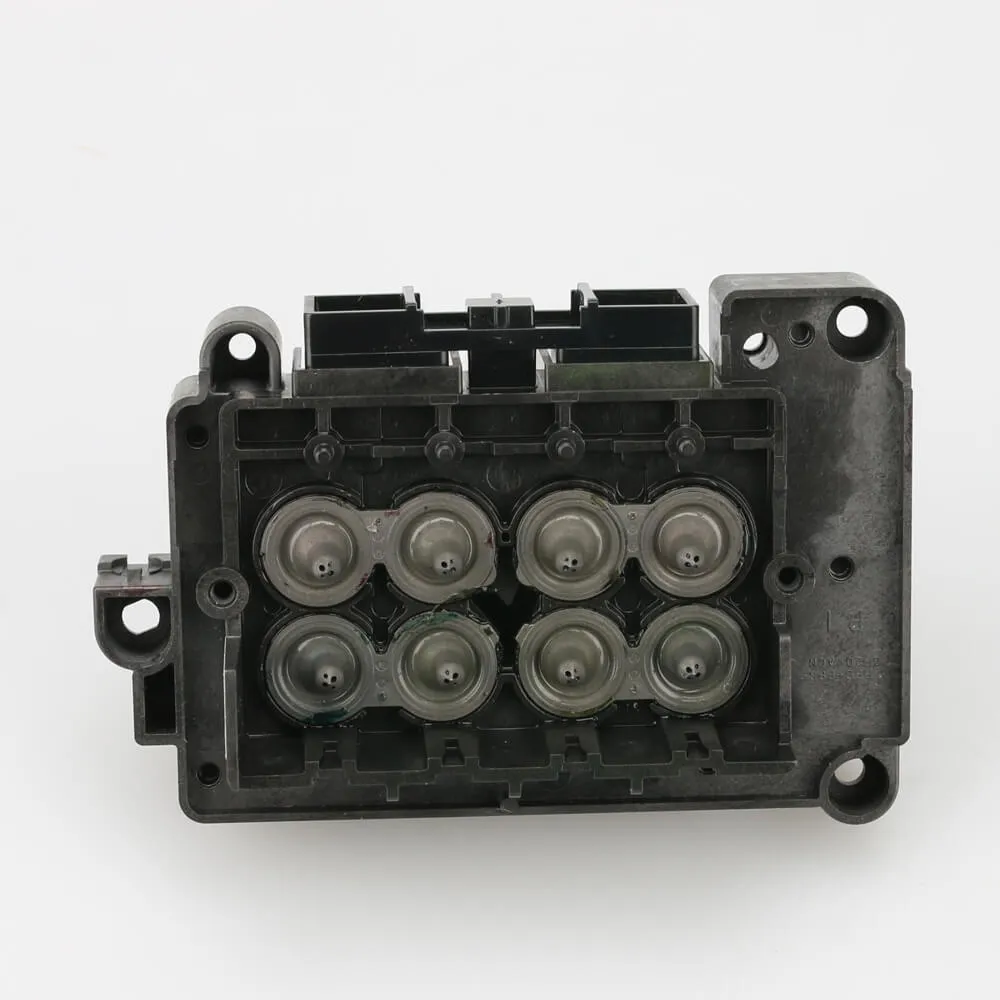

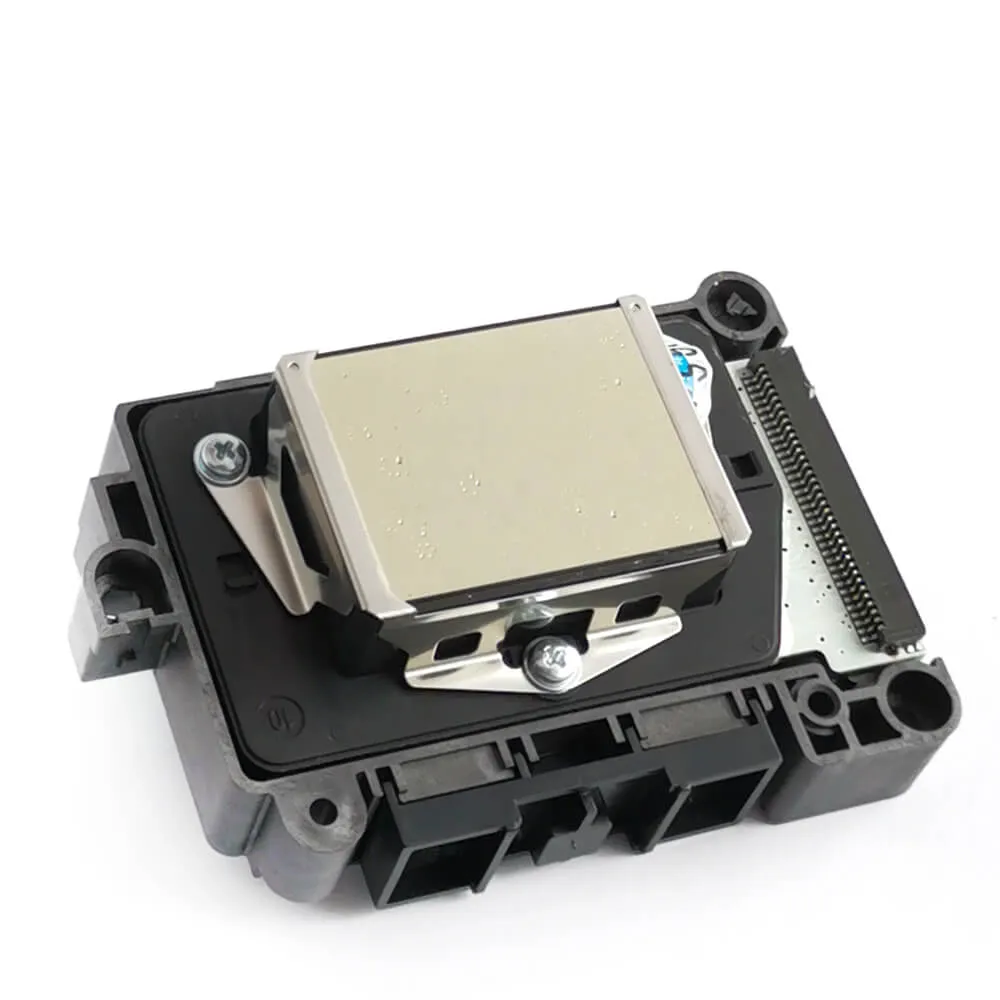

Epson DX7 F196000 Printhead Description
The Epson DX7 F196000 Printhead is a high-precision Micro Piezo inkjet printhead designed for professional large-format and photo printing applications. It is manufactured by Epson and is widely used in Stylus Pro and compatible DX7-based printers.
It features 1440 nozzles (8 channels × 180 nozzles) with a native resolution of 1440 dpi, delivering sharp image detail, smooth gradients, and accurate color reproduction. The printhead supports variable droplet sizes from approximately 1.5 pl to 21 pl, allowing both fine detail printing and strong ink coverage for vibrant graphics.
The Epson Dx7 F196000 uses Epson’s Micro Piezo technology, which provides stable and heat-free ink ejection for consistent long-term performance. It is commonly used in applications such as photo printing, proofing, signage, textile sampling, and graphic production where high resolution and color accuracy are required.
Known for its reliability and precision, the Epson DX7 F196000 remains one of the most widely used Epson printheads in the digital printing industry, especially for water-based and mild solvent printing systems. It is compatible with the Epson Stylus Pro 3800 printer and the Epson Stylus Pro 3880 printer.
Epson F19600 DX7 Printhead Specifications
| Model Number | F196000 |
| Technology | Micro-Piezo |
| Native Resolution | 1440 dpi |
| Min. Droplet Size | 1.5pl |
| Max. Droplet Size | 21pl |
| Total Amount of Nozzles | 1440 (8 lines * 180 nozzles) |
| Firing Frequency | 8 kHz |
| Compatible Ink | Oil-based ink |
| Compatible printers | EPSON 3890 3880 3885 P600 |
