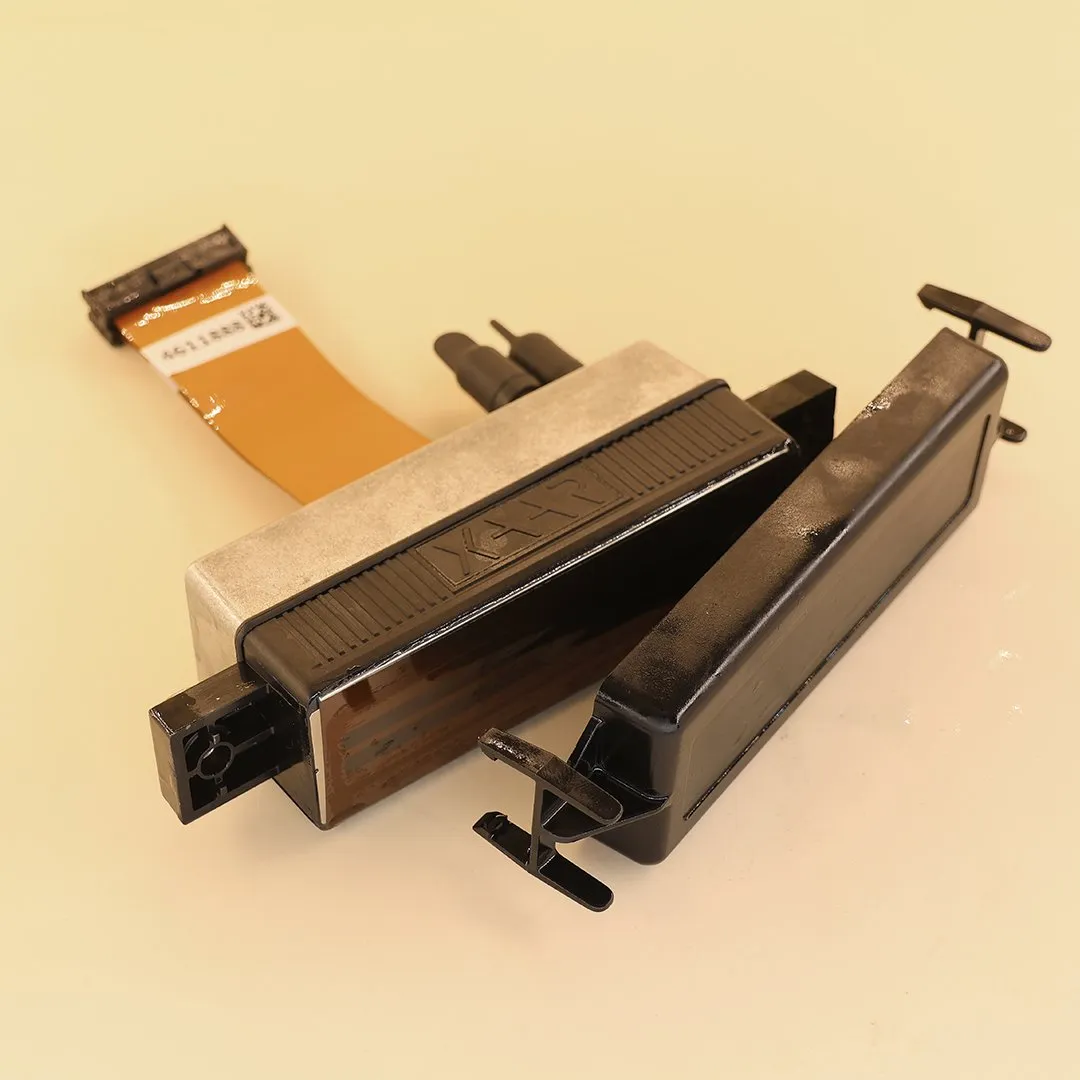

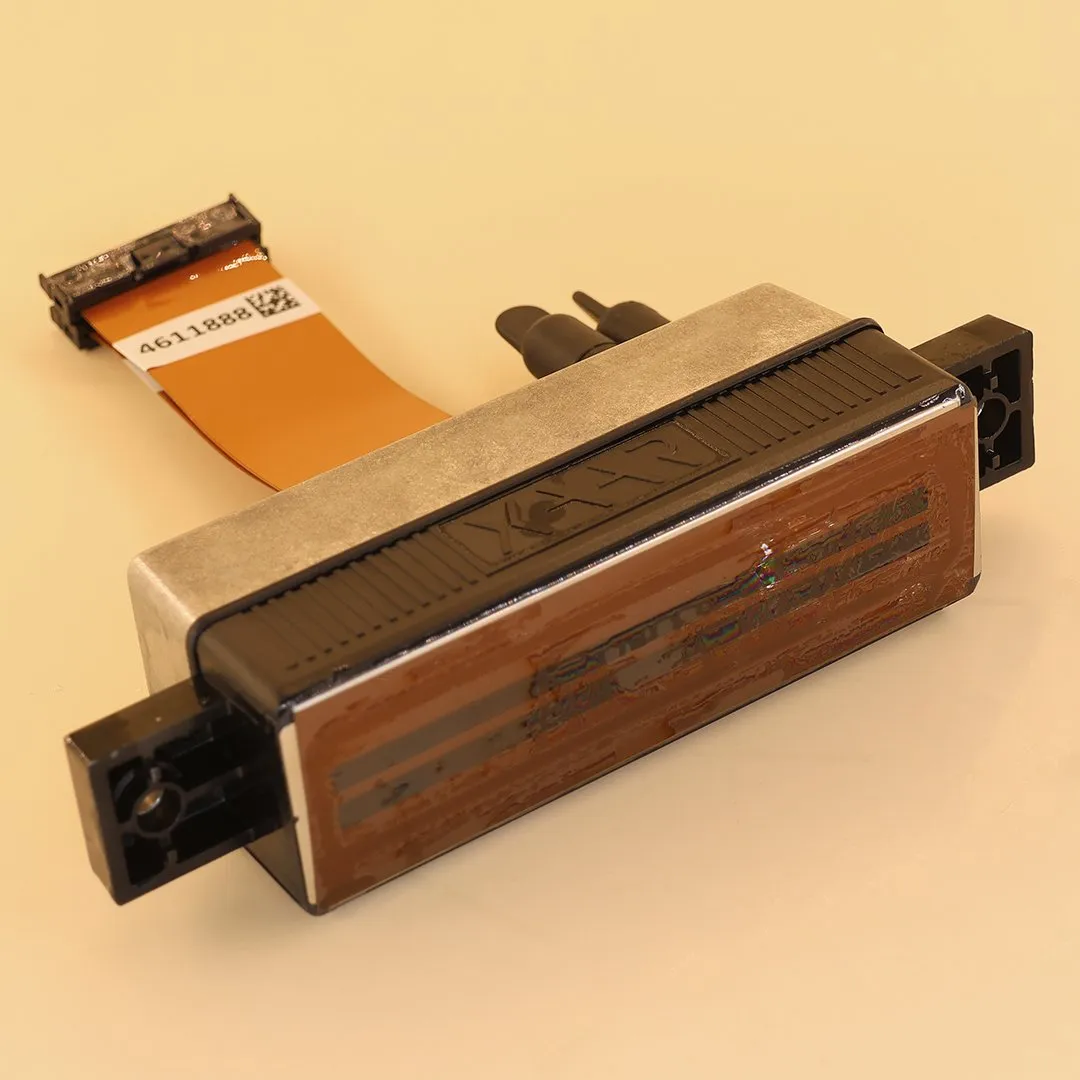

Xaar 1003 GS12U Printhead Description
Equipped with Xaar 1003 U printheads, a digital press can achieve 360 dpi resolution, making it ideal for various industrial printing applications. Xaar’s exclusive technologies enable consistent and dependable single-pass printing, optimizing production efficiency, minimizing downtime, and reducing the need for manual intervention.
Xaar 1003 GS12U Printhead Specifications
| Active Nozzles | 1000 |
| Print Swathe Width | 70.5 mm |
| Nozzle Density (Nozzles Per Inch) | 360 npi |
| Ink Type | UV, oil, solvent |
| Drop Volume | 12 to 84 pl |
| Firing Frequency/Grey Levels | 27 kHz/binary
12 kHz/4 grey levels 6 kHz/8 grey levels |
| Max Line Speed/Grey Levels (360 * 360 dpi) | 50 m/min / 4 grey levels
25 m/min / 8 grey levels |
| High Laydown Technology—Film Thickness at 25 m/min Line Speed | 80um |
| High Laydown Technology—Film Thickness at 50 m/min Line Speed | 50um |
| Dimensions (W*D*H) | 125*30*60mm |
Xaar 1003 GS12U Printhead Applications
Decor:
- Glass
- Laminates
- Wallpaper
Packaging:
- Direct-to-shape
- Folding cartons
- Labels
- Product printing
