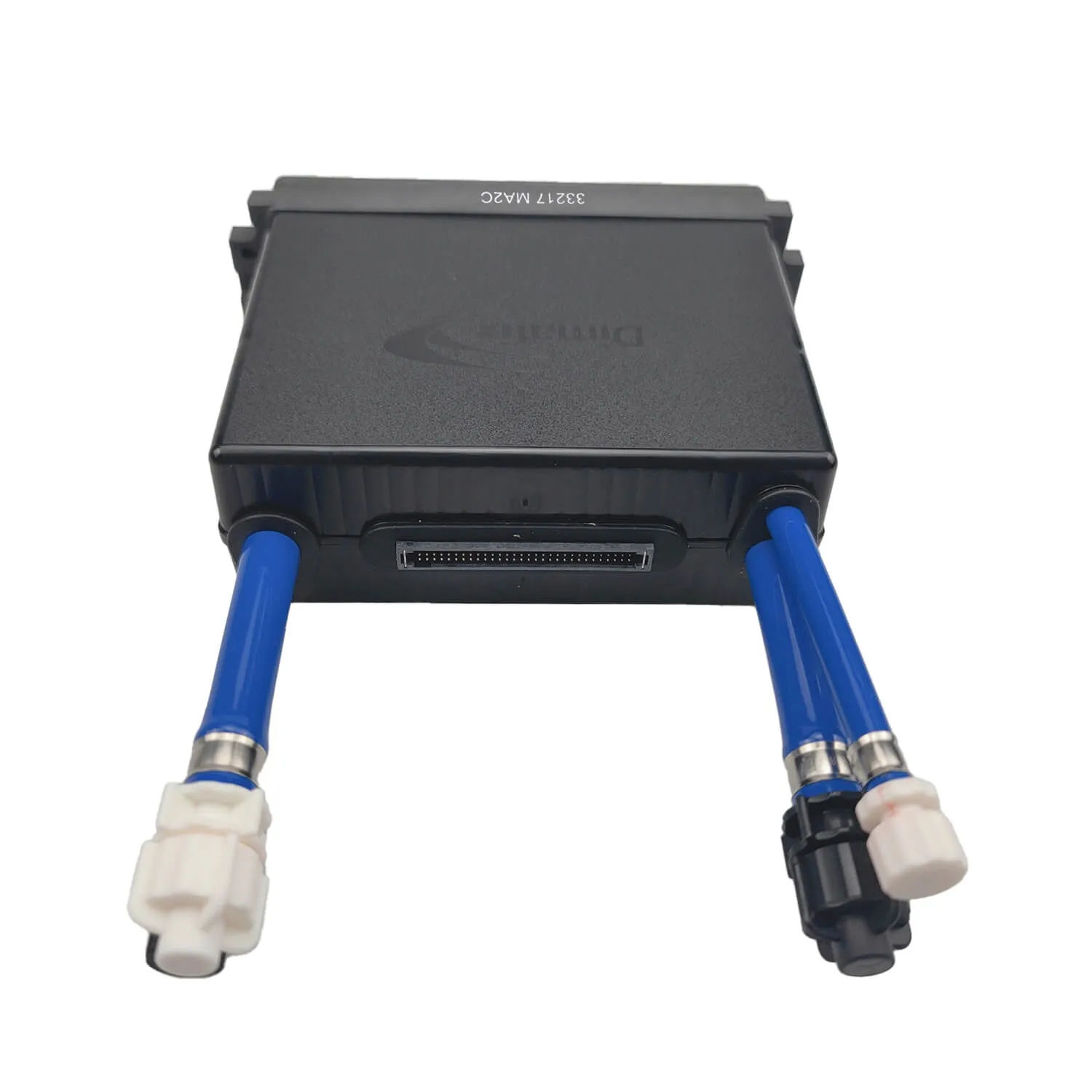

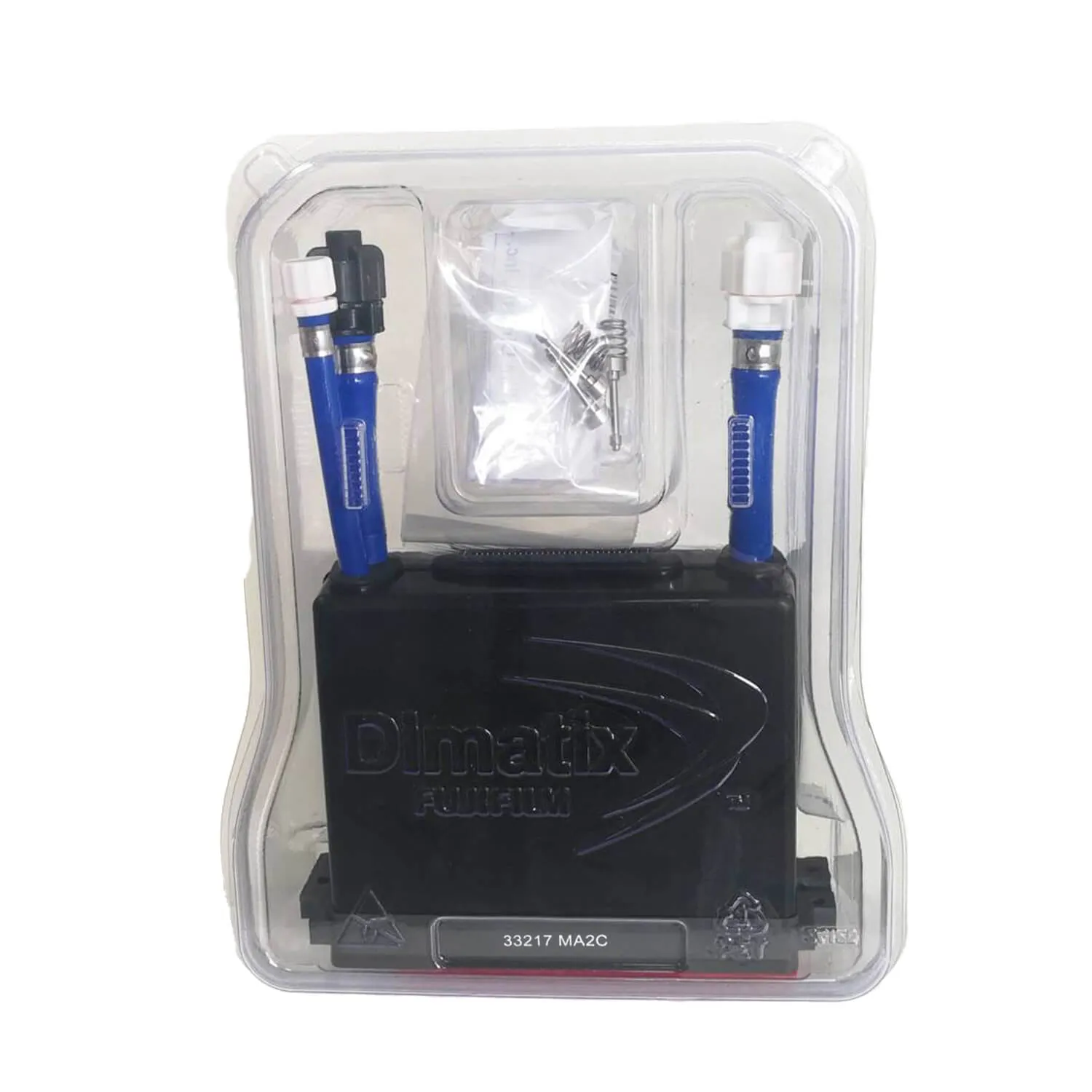

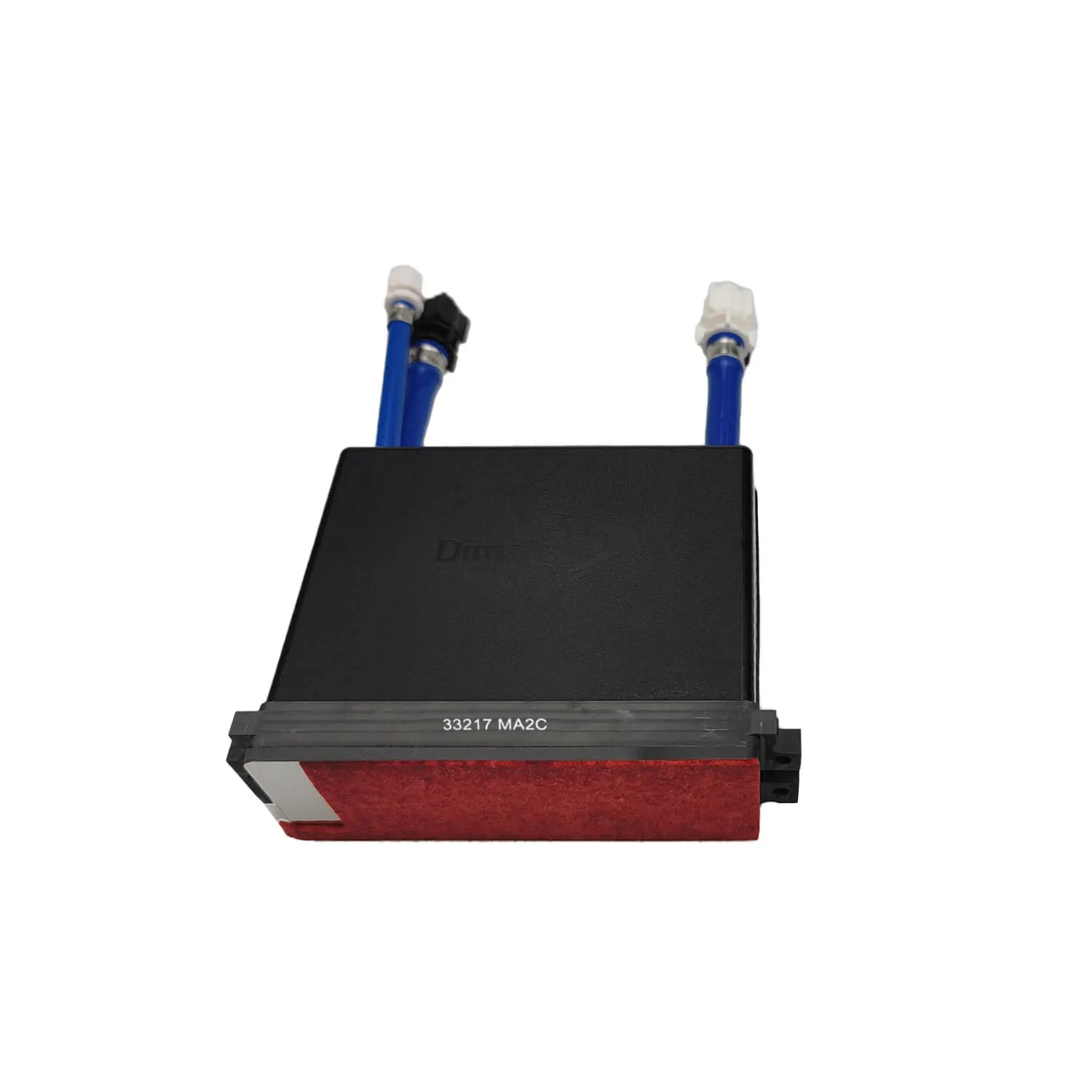

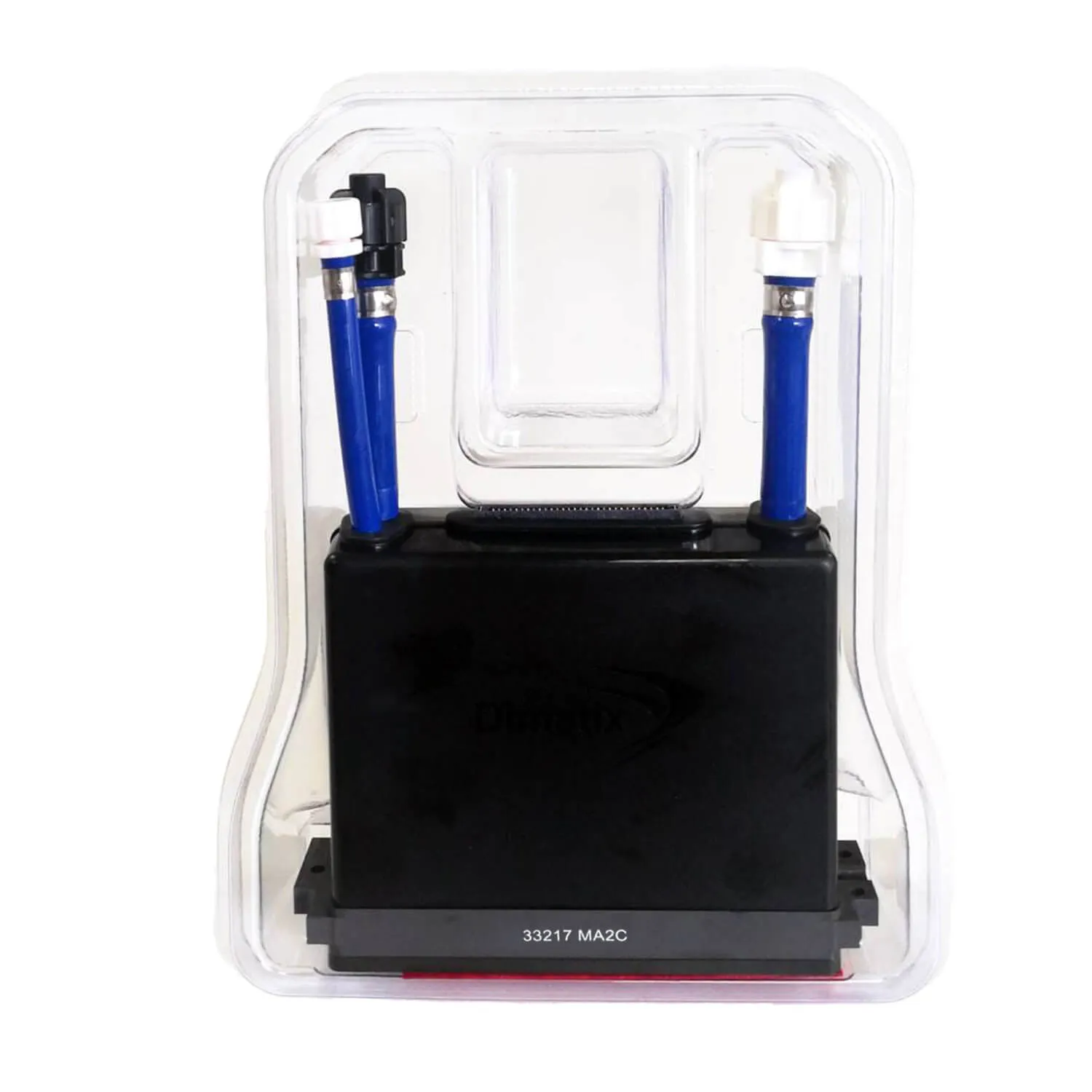

The StarFire SG1024/MA-2C printhead is suitable for textile, wide format, and commercial printing as well as decorative applications due to its robust and repairable construction. Specifically designed for modern high-speed scanning and single-pass industrial systems, this drop-on-demand printhead offers seamless integration and exceptional performance. It supports two-color operation with resolutions up to 200 dpi.
The SG1024/MA-2C printhead features dual ink paths, each containing 512 independent channels, organized in four rows on a single nozzle plate, achieving up to 200 dpi resolutions. This design allows all 1024 nozzles to be activated either simultaneously or individually.
Starfire SG1024MA2C Printhead Specifications
| Number of Addressable Jets/Module | 1024 |
| Print Width (mm/in) | 64.96 (2.55) |
| Native Resolution (dpi) | 400 (200 2C configuration) |
| Firing Frequency (kHz) | 30/12 |
| Versadrop Max Productivity (ng/kHz) | 900 |
| Native Drop Size/Largest Drop Size (pl) | 30/80 |
| Nozzle Plate Technology | Metal |
| Compatible Fluids | UV-curable, organic solvents, and aqueous inks |
| Viscosity Range (cP) | 8–20 (10–14 for highest productivity) |
| Temperature Control | Yes |
| Inkjet Operating Temperature Range (C/F) | Up to 50°C / 122°F |
| Integrated Temperature Sensor | Included |
| OEM Accessible Non-volatile Memory | 64-byte rewritable |
