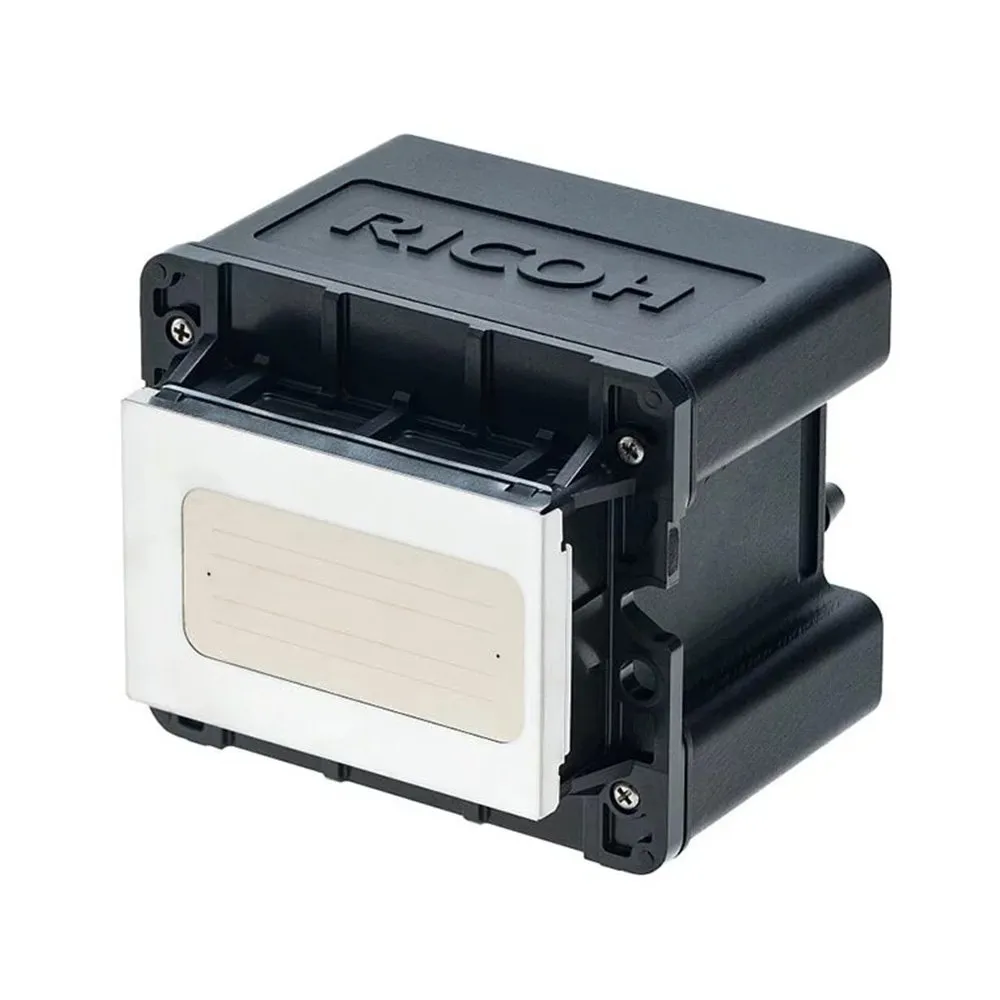

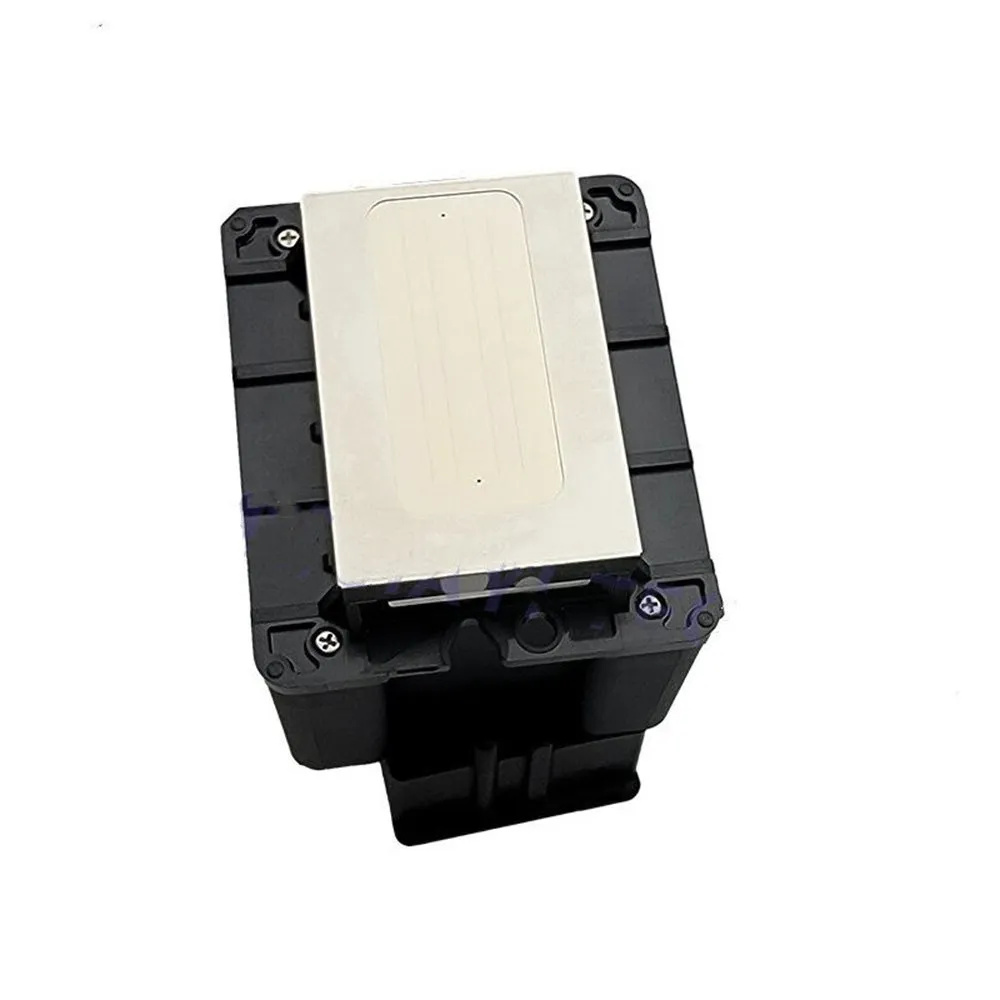

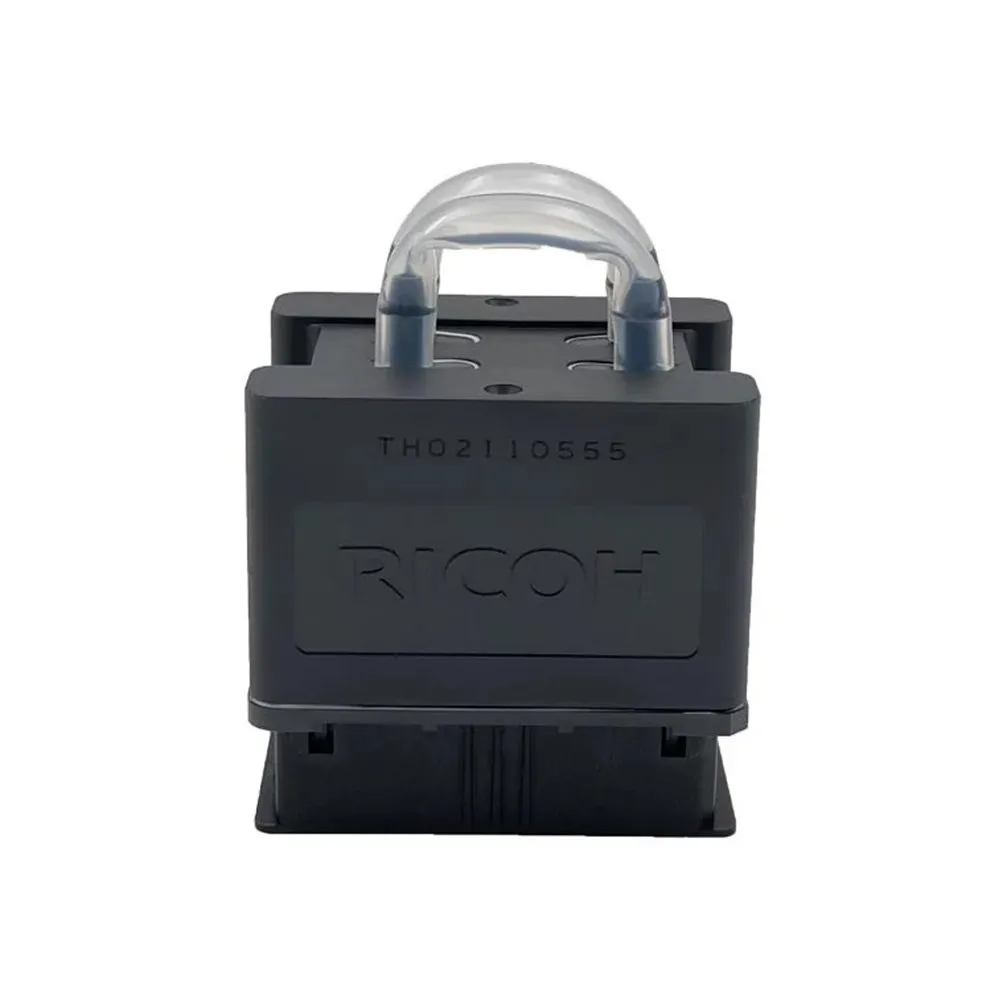

Ricoh Gen5i Printhead/Ricoh TH5241 printhead Description
Ricoh has launched a new industrial inkjet print head, the RICOH TH5241, which is the first Ricoh print head to use a thin-film piezoelectric actuator (PZT). The RICOH TH5241 printhead belongs to the RICOH TH industrial inkjet printhead series. The Gen5i printhead uses MEMS technology and Ricoh’s unique design to become a compact printhead with 320×4 lines and a total of 1280 nozzles, with a printing resolution of up to 1200 dpi.
Because the ink channels for each nozzle row are isolated, a single printhead can spray up to four colors of ink. The printhead is compatible with all types of inks, including UV and water-based inks, and can be used in a variety of industrial applications such as logo graphics, textiles, and labels.
Ricoh TH5241 printhead/Ricoh Gen5i Printhead Specifications
| Method | Thin-film piezoelectric transducer with bend mode |
| Print Width | 27.1 mm (1.06″) |
| Number of nozzles | 1280 (320 nozzles/row x 4 rows, staggered) |
| Nozzle Resolution | 600 npi (2 colors, 1 color) 300 npi (4 colors) |
| Nozzle spacing (row-to-row distance) | A: 2.286mm B: 6.095mm |
| Max. number of color inks | 4 colors |
| Drop volume | 3 pl (Single drop) 3～12 pl (max 21 pl) (Multi-drop) |
| Jetting frequency | 40 kHz (2 levels), 24 kHz (4 levels) |
| Compatible ink | UV, Solvent, Aqueous, Others. |
| Viscosity range | 7 mPa・s |
Ricoh Gen5i Printhead Applications
The Ricoh TH5241 printhead can be used for various applications, such as sign graphics, labels, textiles, and DTG (direct to garment).
