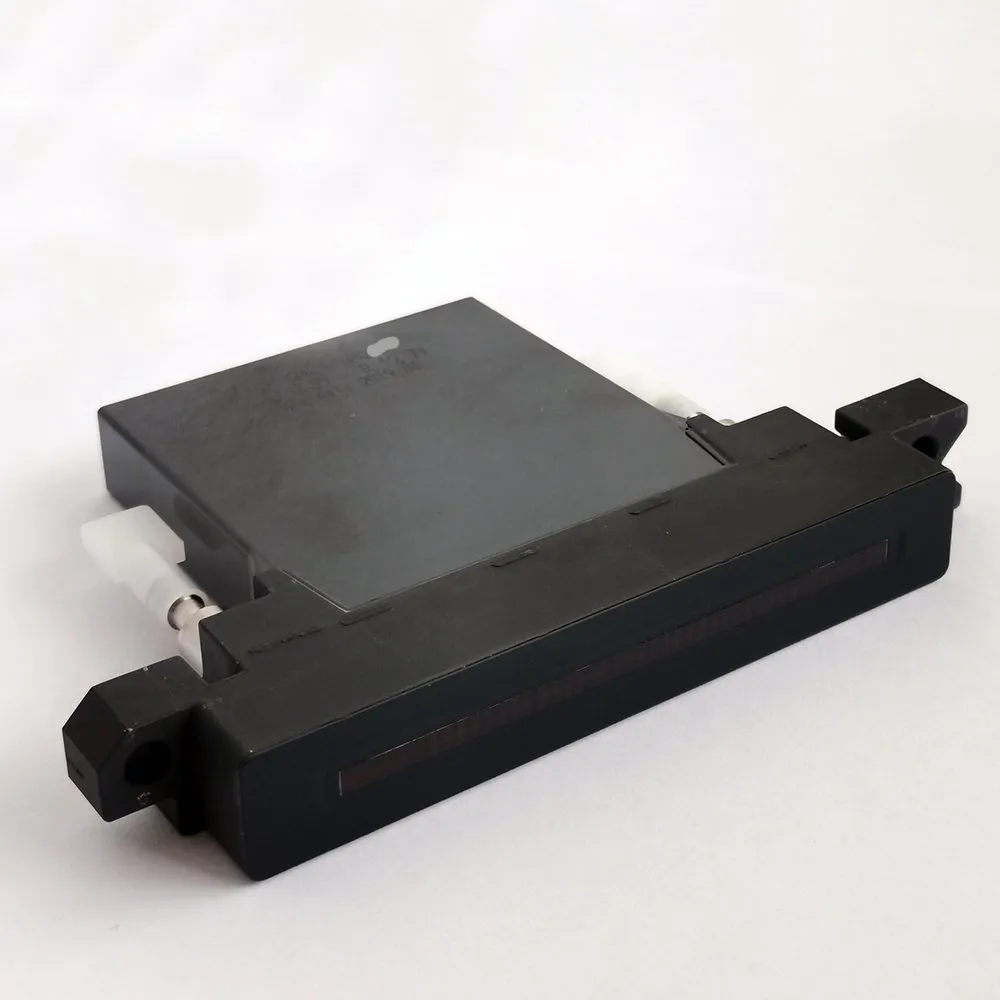

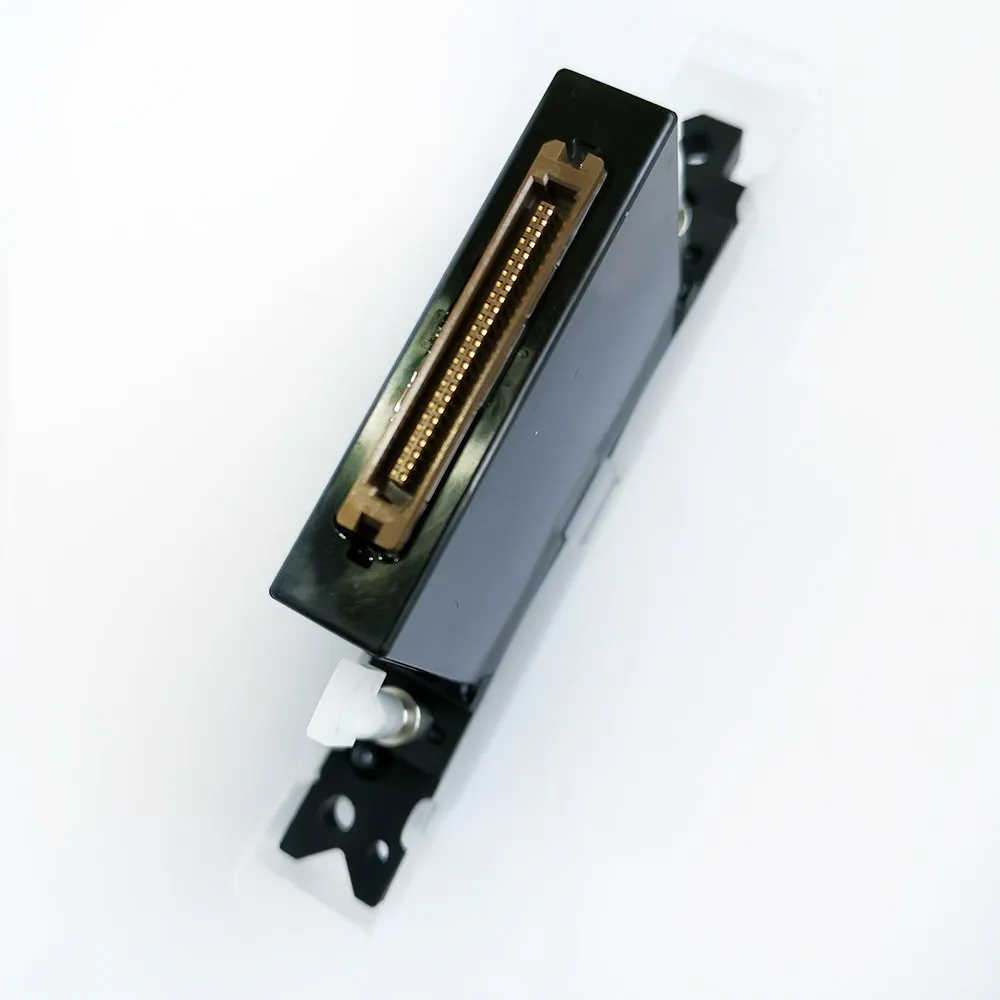

The Konica Minolta KM1024 LH print head, also known as the Konica Minolta KM1024 LHB, is a robust, shear mode, piezo on-demand print head designed for both binary and 8-level greyscale modes. This capability allows for variable drop sizes and enhanced print quality without the need for additional print heads.
The KM1024 LHB printhead is a significant improvement over the KM512 series, offering twice the print width and double the greyscale levels. Konica Minolta’s piezo on-demand inkjet heads operate at lower voltages compared to other inkjet heads, and the new actuator in the KM1024 further reduces power consumption. The KM1024 LH features 1024 nozzles with a droplet size of 42 pico liters and a native resolution of 360 dpi.
Konica 1024LHB printhead is compatible with various inks, including solvent, UV, and oil-based inks. For high-viscosity inks like UV and solvent inks, the Konica 1024 is integrated with a heater to ensure optimal performance.
KM 1024 LHB 42PL Printhead Specifications
| Technology | Piezo Drop-On-Demand (Shared wall 3 cycle) |
| Native Resolution | 180dpi×2lines＝360dpi |
| Cal. Droplet Size | 42 pico litre |
| Tot. Amount of Nozzles | 512nozzles × 2lines = 1024nozzles |
| Nozzle Spacing | 70.5 μm（141μm×2lines） |
| Print Width | 72 mm |
| Firing Frequency | 7.6 kHz |
| Ink Compatibility | Solvent and UV ink |
| Heater | Integrated |
| Grey-scale | 8 levels |
