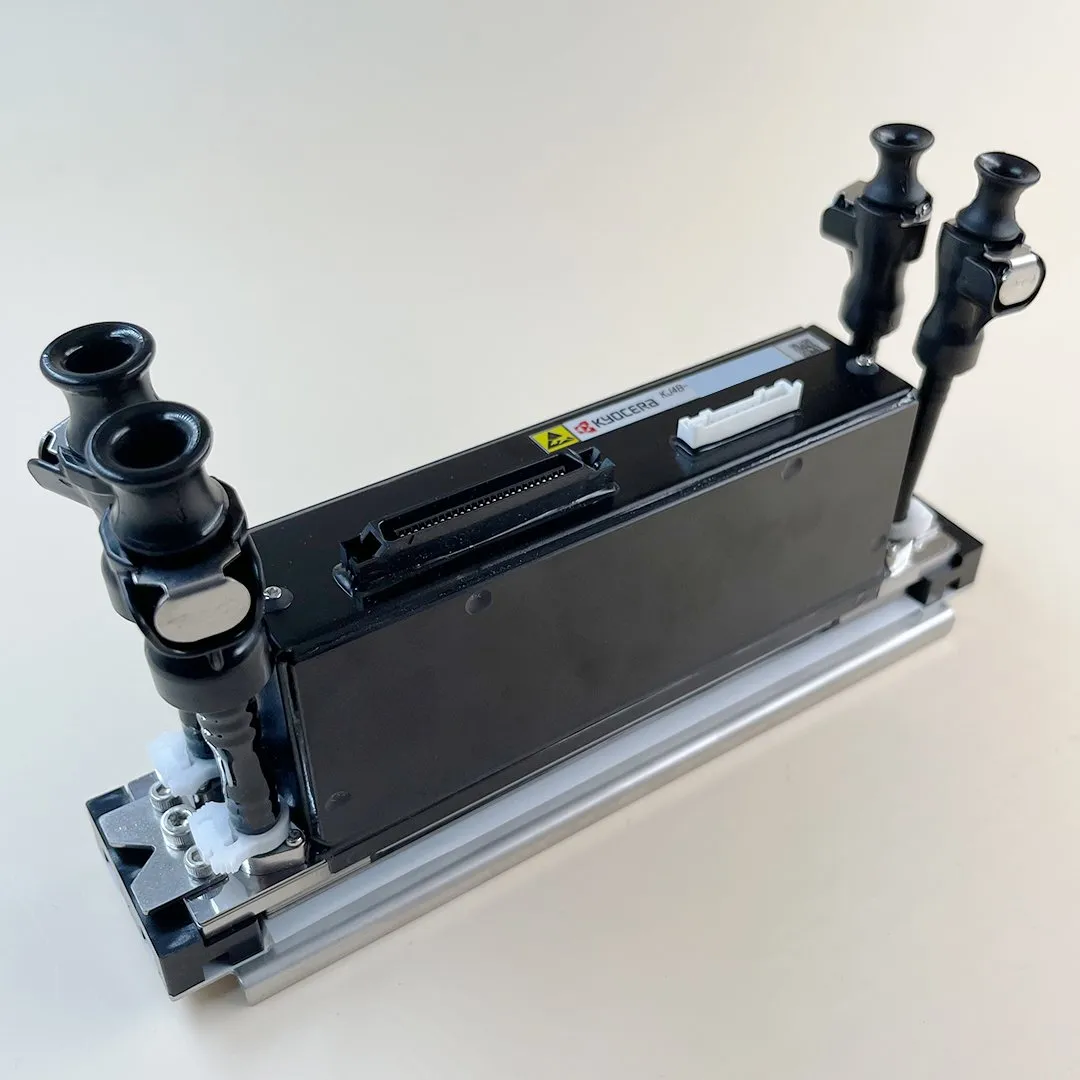

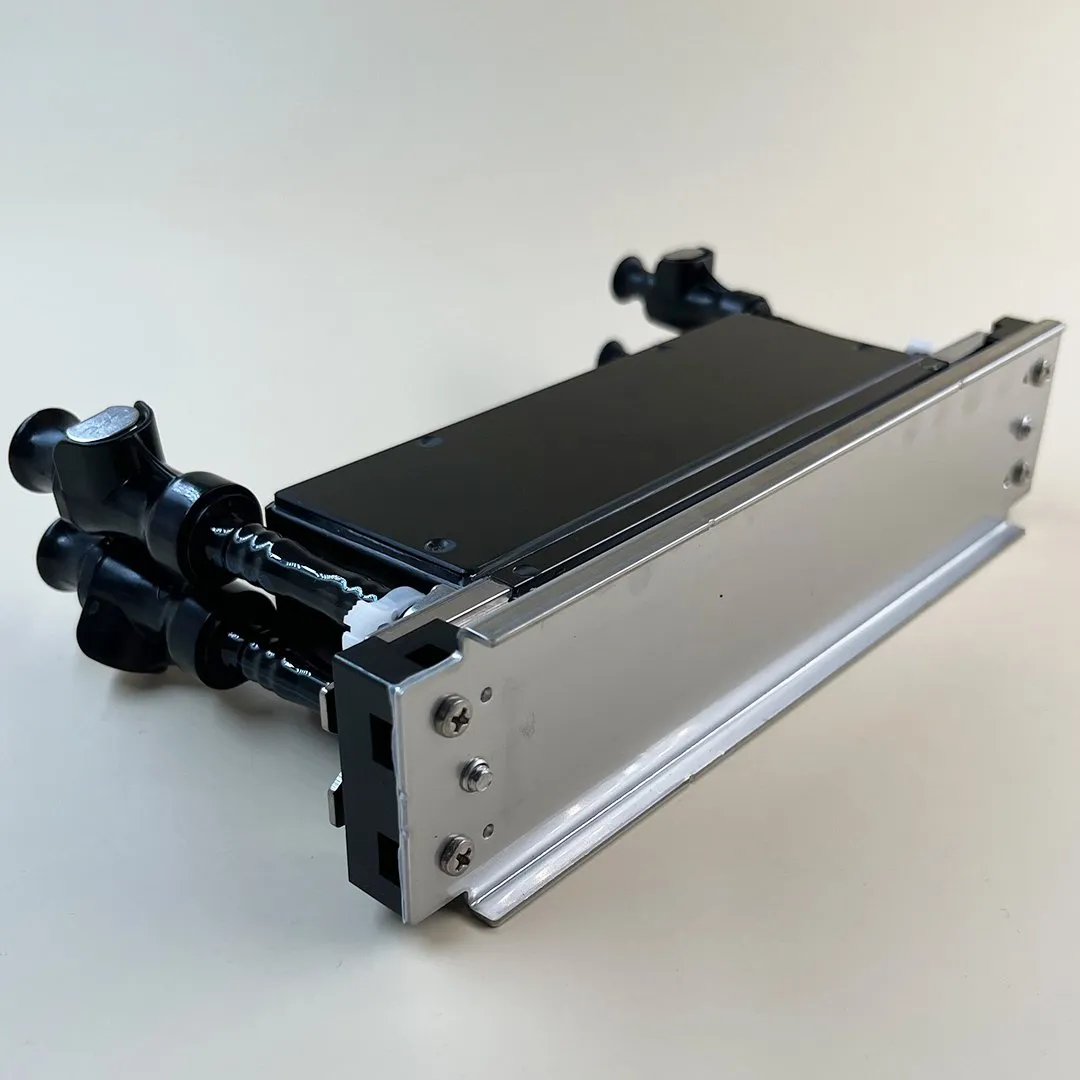

Kyocera KJ4B-0300 Printhead Description
This 600 dpi printhead features a maximum drive frequency of 30 kHz, achieving high-quality printing with a small drop volume of 5 pl at 75 m/min. The printhead has 2,656 built-in nozzles that are arranged across a 112.35 mm wide print swathe. Its unique ink channel design provides a stable ink supply.
The printhead has 2,656 built-in nozzles and can eject about 150 million dots per second. To increase the speed, the printhead mainly adopts measures such as increasing the driving frequency, improving the nozzle shape, and adjusting the waterproof film material.
Kyocera KJ4B-0300 Printhead Specifications
| Number of Nozzles | 2656 (2558) | |
| Effective Print Width (mm) | 112.35 | |
| Ink | AQ | |
| Maximum Drive Frequency (kHz) | 30 | |
| Resolution (dpi) | 300 dpi * 600 dpi | |
| Print Speed *1 (m/min) | 76.2 | |
|
Print Speed*1 (pl) |
Minimum | 5 |
| Maximum | 12 | |
| Nozzle Recirculation | No | |
| Width*Length*Height (mm) | 200*36*68.5 | |
| Recommended Ink Viscosity*2 (mPa * s) | 6.0~7.0 | |
Printer Compatibility
Printerevolution T1800, T2600, T3200
FabriVu 340
Hanway Highjet 2500B
EFI Reggiani BLAZE
