Epson I3200(8)-A1HD Printhead Description
The Epson I3200(8)-A1HD Water is a cost-effective, 1.33-inch wide printhead offering higher nozzle resolution than the existing I3200-A1, with up to 1200 nozzles per inch. This printhead is suitable for water-based inks.

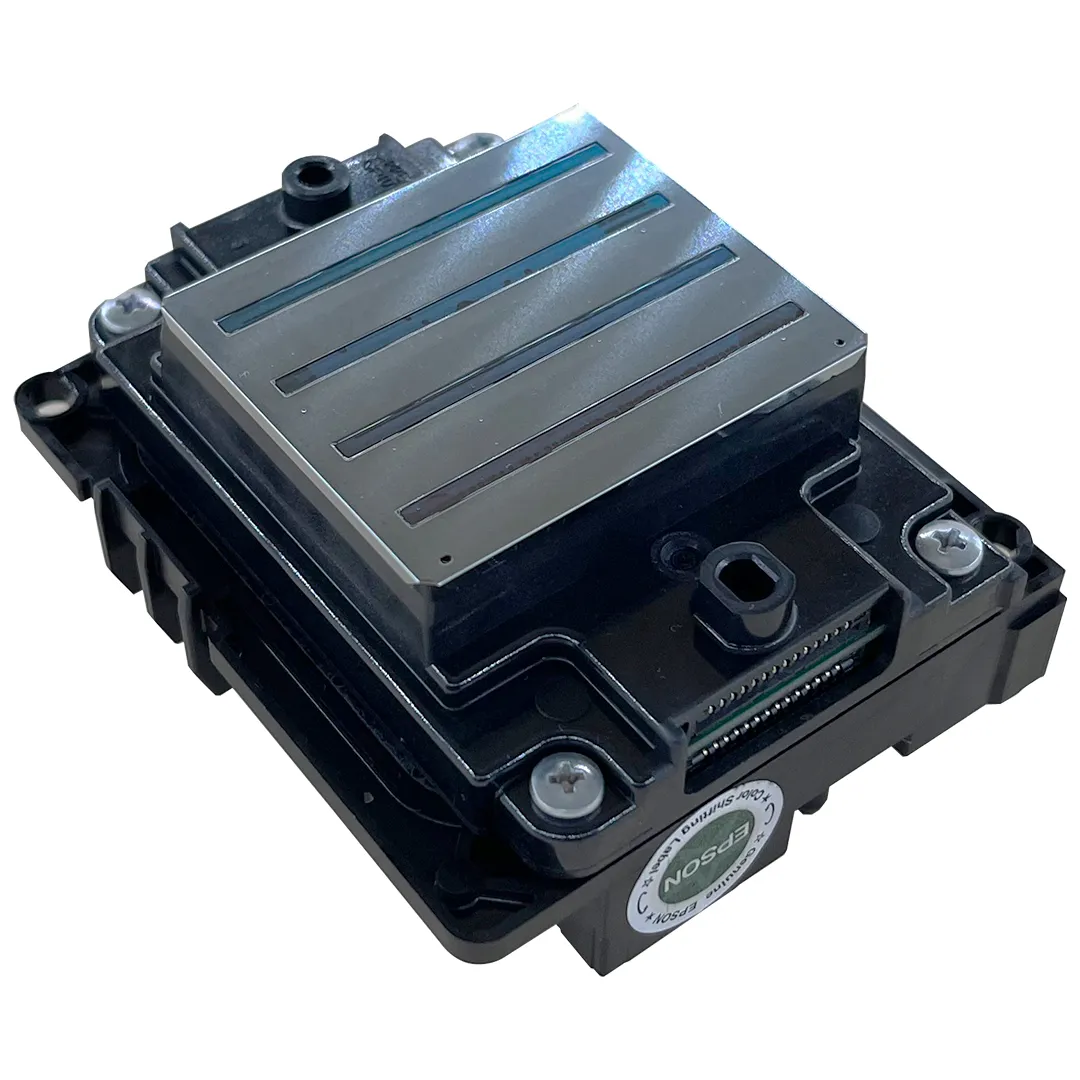

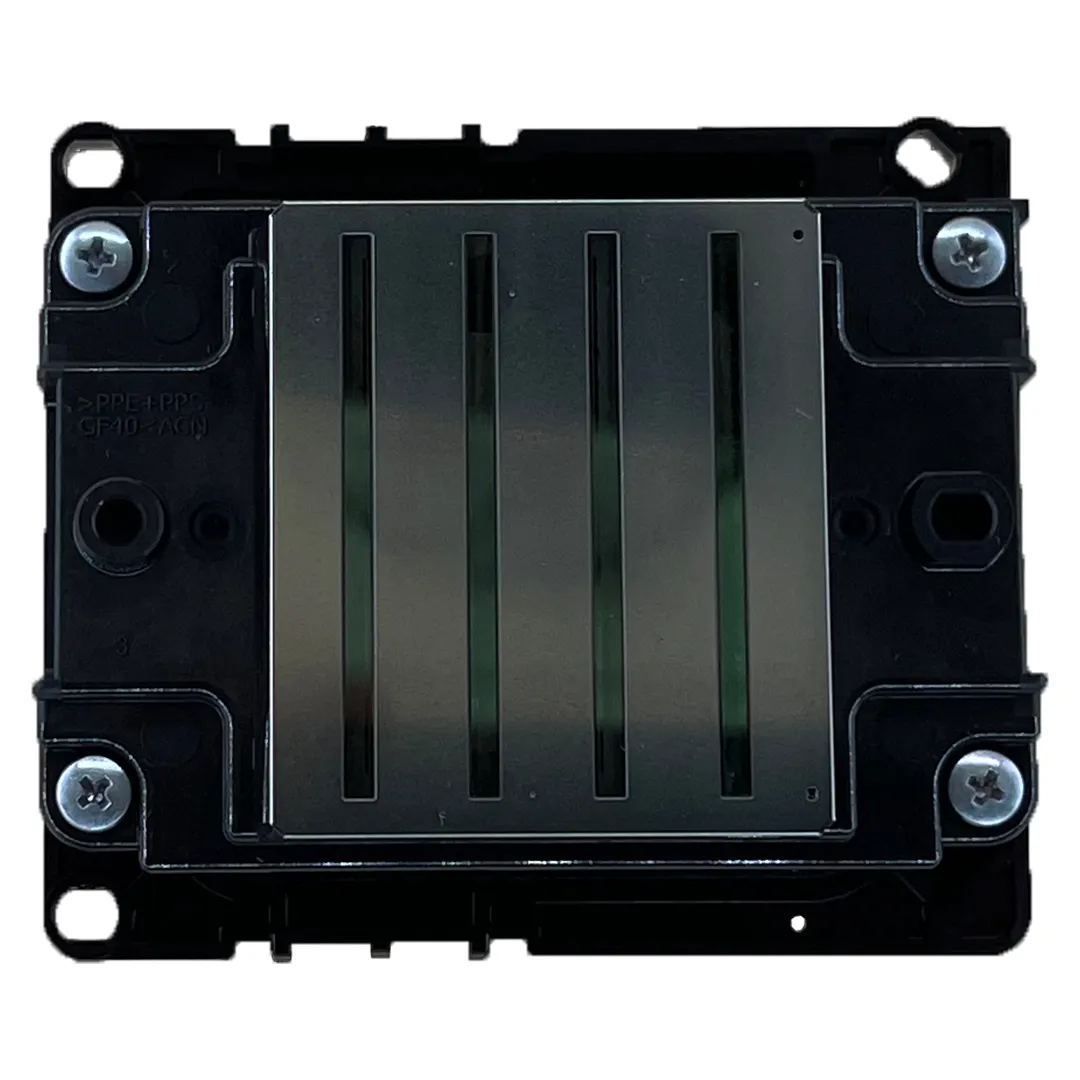

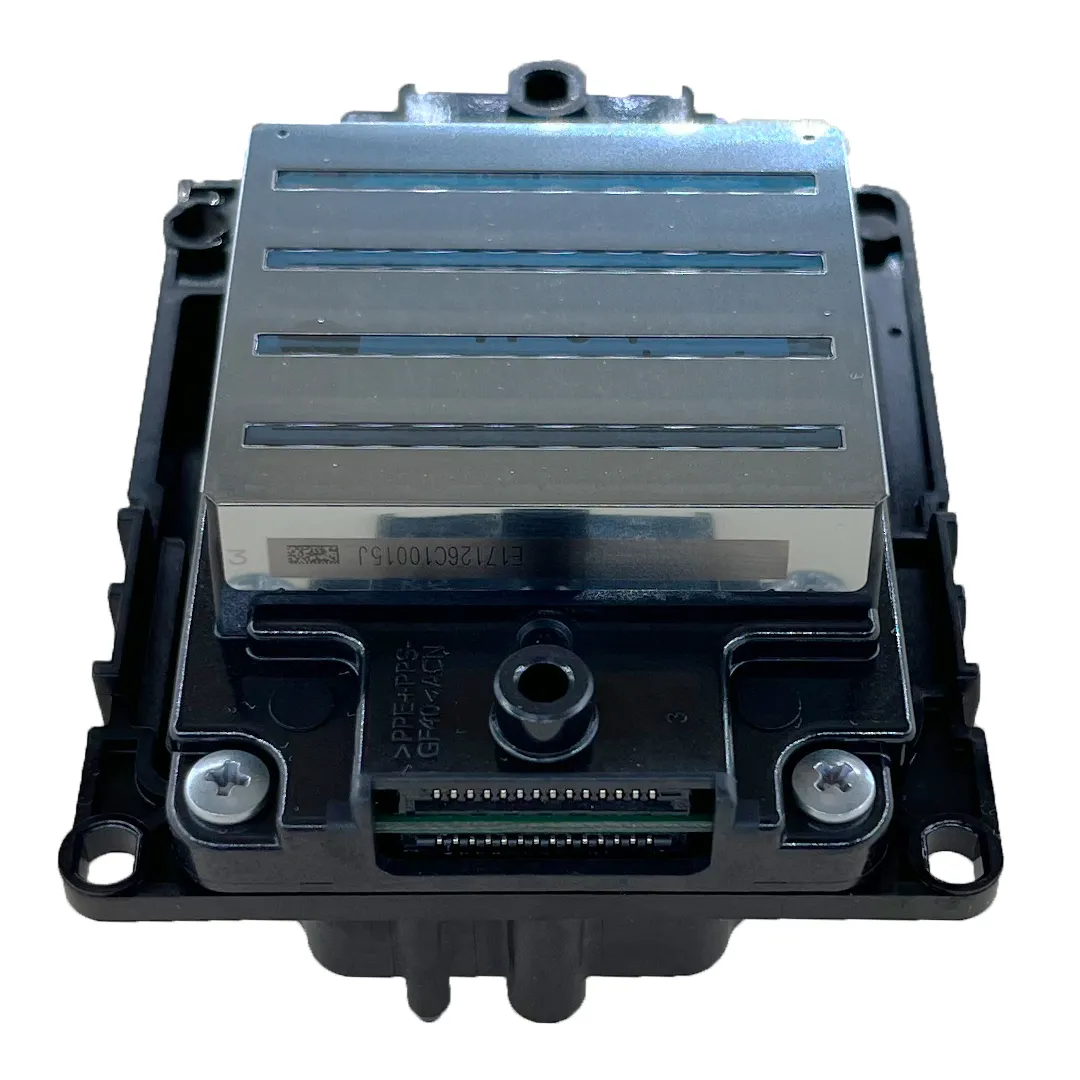

Structurally, the Epson I3200-A1 and Epson I3200(8)-A1HD printheads are the same, both featuring 8 rows of 400 nozzles. However, they are not interchangeable; each printer must use the specific head it was designed for.
The Epson I3200-A1 supports 4 colors, with 4 inputs on the manifold for damper connection. Each color is emitted by a pair of nozzle rows.

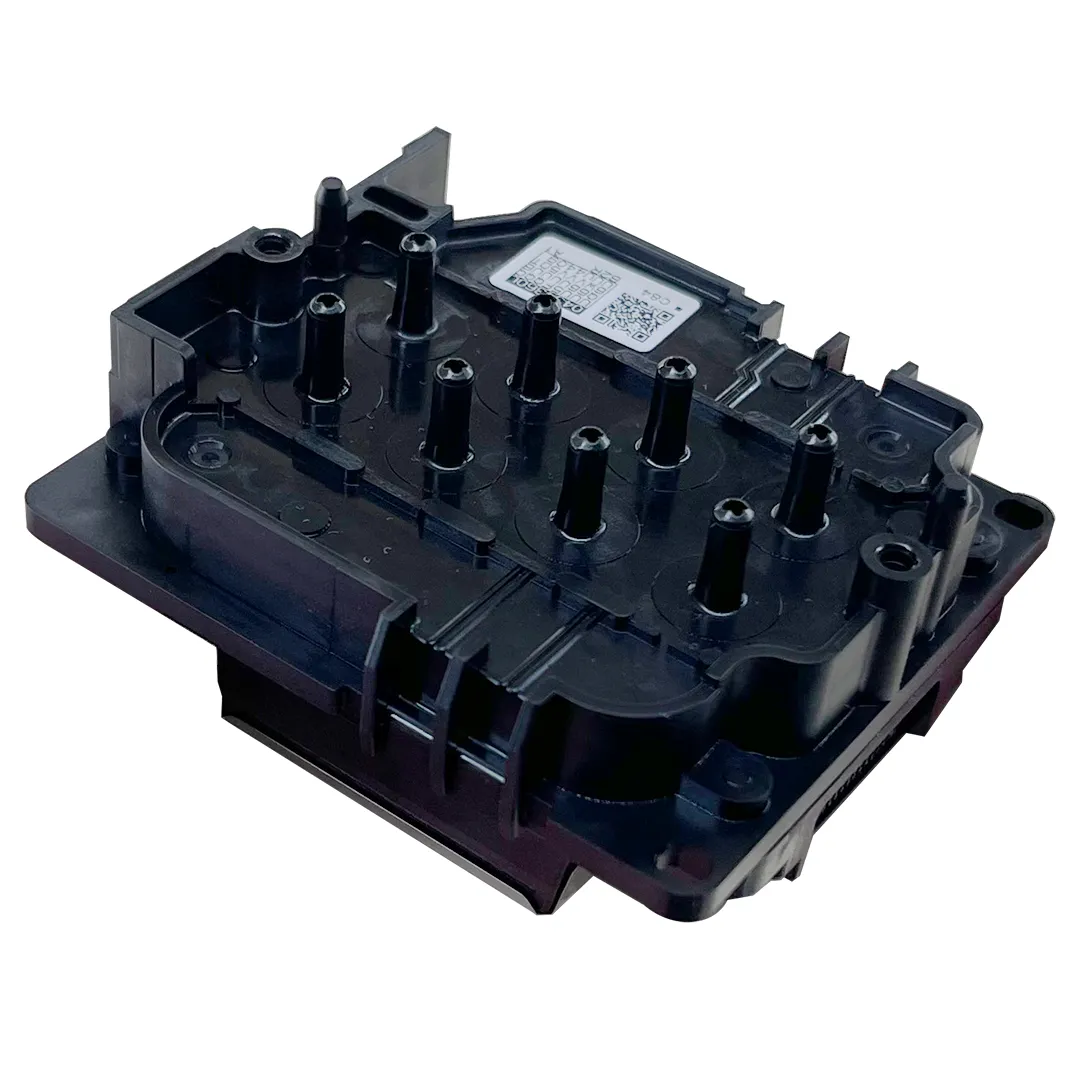

The Epson I3200(8)-A1HD supports 8 colors, with 8 inputs on the manifold for damper connection. Each color is emitted by a single nozzle row.
Epson I3200(8)A1HD Printhead Specifications
| Product Name | I3200(8)-A1HD | |
| Number of nozzles | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows 1,200npi/4rows | |
| Max. number of color inks | 8 colours | |
| Effective print width | 33.8 mm | |

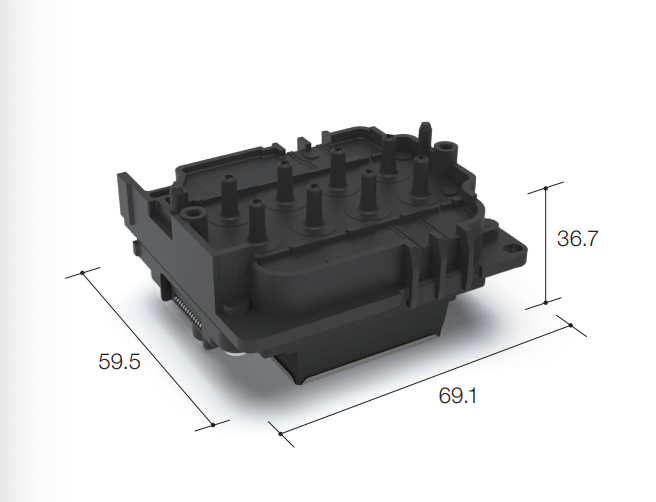

| Width x Depth x Height | 69.1x 59.4 x 36.7 mm | |
| Weight | 78 g | |
|
Droplet ejection performance |
Binary | 6 pl（43.2kHz） |
| 3 levels grey scale | 6.3-12.3 pl（21.6kHz） | |
| 4 levels grey scale | 3.8-6.1-9.4 pl（21.6kHz） | |
| Viscosity range | 2.2-3.8 mPa･s | |
| Ink type | Aqueous | |
